LAVERCOMBE GRADER SERVICES – PROJECTS (2016)

T15-1743 – Middle Point – Construct Rural Bus Turnarounds – NTG
  • 2 Stage Rural Bus Turnarounds Project:

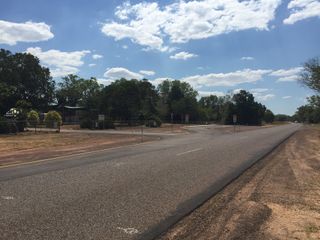

    • Anzac Road (Middle Point School)
    • Miniata Road (Lambell’s Lagoon)
  • Mobilisation/Demobilisation of required equipment.
  • Implementation and supervision of Traffic Control Management and Environmental Management.
  • On-site earthworks which includes manipulation, excavation and delivery of gravel.
  • Road Formation which includes extensive Fill, Sub-Grade and Base Course.
  • Concrete Works including Kerbing, Footpaths and Driveways.
  • Primer Seal (1.1L/m2) with Mix Type 3 – 40mm Thick Asphalt.
  • Road Furniture and Traffic Control Devices including Signage and Line Marking Works.
    T15-1743
T16-1208 – Elrundie Avenue – Construction of Two Bus Turn-Ins – NTG
  • Mobilisation/Demobilisation of required equipment.
  • Implementation and supervision of Traffic Control Management and Environmental Management.
  • 500m2 of 150mm Deep BOMAG with 2% Cement Stabilisation. 50mm Gravel Top Up.
  • Primer Seal (1.2L/m2) with Mix Type 5 – 35mm Thick Asphalt.
  • Road Furniture and Traffic Control Devices including Signage Relocating and Line Marking Works.T16-1208
T16-136 – Litchfield Council – Shoulder Repairs to Various Roads
  • Mobilisation/Demobilisation of required equipment.
  • Implementation and supervision of Traffic Control Management.
  • Shoulder Repair Works to 14 Roads which included:
  • 32,800m2 of 80mm Top Up.
  • 10,260m2 of 100mm Top Up.
  • T16-136

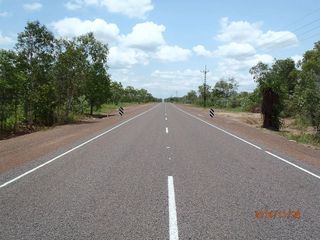

T16-142 – Litchfield Council – Leonino Road – Upgrade Floodway CH 3.9km
  • Mobilisation/Demobilisation of required equipment.
  • Implementation and supervision of Traffic Control Management and Environmental Management.
  • Clearing Vegetation and Grubbing of Surface to realign existing road.
  • Delivery of bulk Fill material to lift the road for better flood immunity.
  • Road Formation which includes Subgrade and Base Course.
  • Drainage Works includes extending 1200 x 600 Culverts and installing reinforced headwalls.
  • Concrete Works includes Reinforced Concrete Margins.
  • Primer Seal (1.1L/m2), First Coat Seal (2.2L/m2) with 20/14 Aggregate Mix.
  • Road Furniture and Traffic Control Devices including Signage and Line Marking Works.
  • T16-142

T16-1524 – Stuart Highway and Livingstone Road Intersection Upgrade – NTG
  • Mobilisation/Demobilisation of required equipment.
  • Implementation and supervision of Traffic Control Management and Environmental Management.
  • Service relocating works including Thrust Boring, Lowering, Redirecting and Reinforcing.
  • On-site earthworks which includes constructing a trapezoidal drain, detail excavation and backfilling of ’washouts’.
  • Road Formation which includes Sub-Grade, Sub-Base and Base Course.
  • 1300m2 of 200mm Deep Reclaiming (BOMAG) with Gravel Top Up.
  • Drainage Works includes extending existing 600mm Concrete Pipes.
  • Protection Works includes installing Gabions, Renno Mattress and Grouted Stone Pitching.
  • Primer Seal with First Coat and Second Coat Seal with 14mm and 7mm Aggregate.
  • Road Furniture and Traffic Control Devices including Project Notice Boards, Signage and Line Marking Works.
  • Landscaping Works including delivery and spreading Topsoil, Hyrdomulching and establishing temporary irrigation.
  • T16-1524
